Arabirim | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
|
---|
Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
|
---|
Fan Sayısı | Fanless |
---|
Fiziksel Güvenlik Kilidi | Yes |
---|
Harici Güç Kaynağı | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
---|
Paket Yönlendirme Hızı | 0.8928 Mpps |
---|

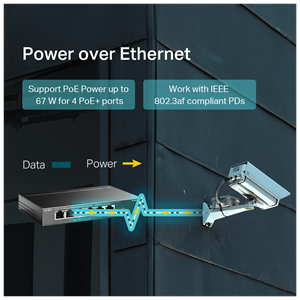

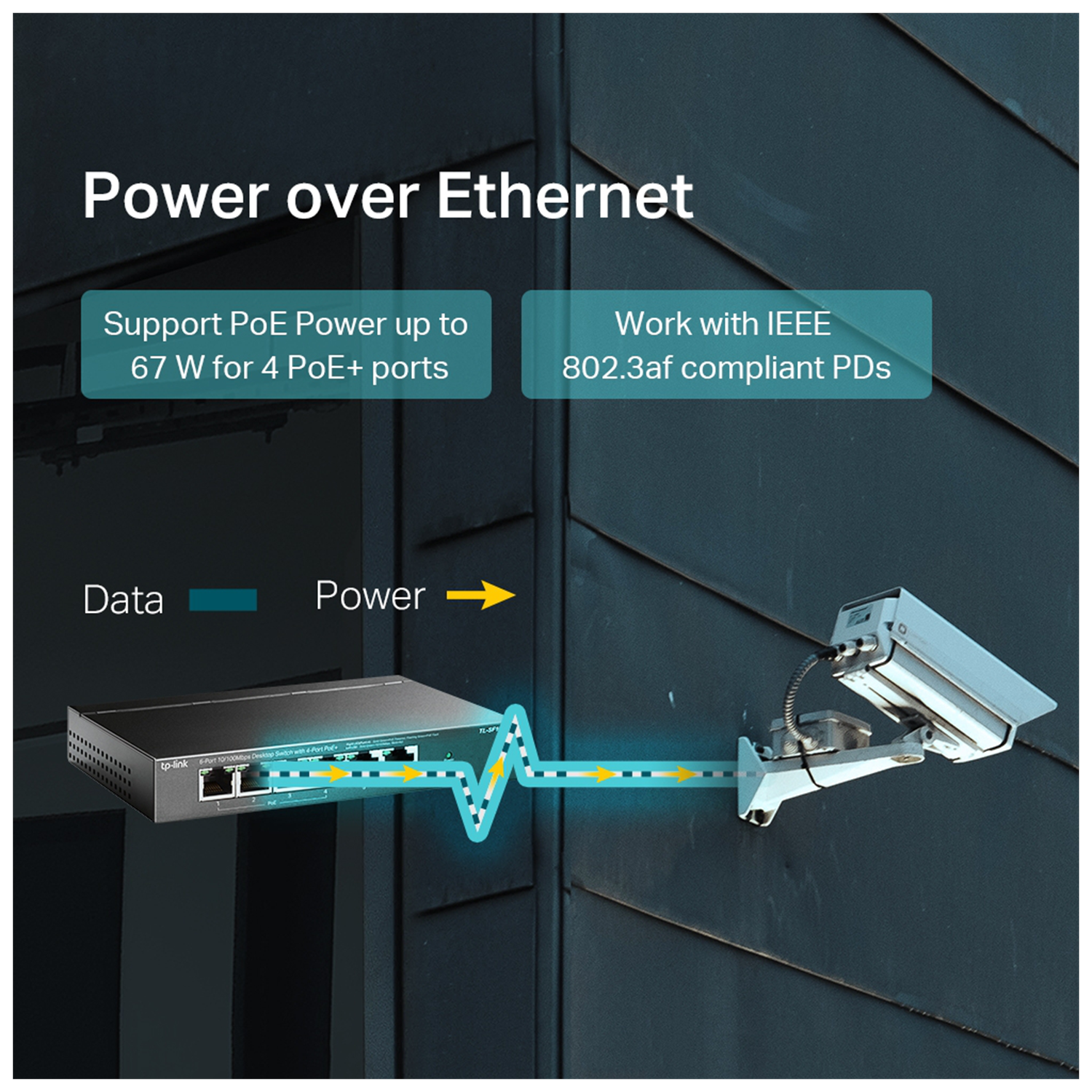

PoE Portları (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
|
---|
MAC Adres Tablosu | 2K |
---|
Jumbo Frame | 2 KB |
---|
Switching Kapasitesi | 1.2 Gbps |
---|
Boyutlar ( W X D X H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
---|
Maks. Güç Tüketimi | • 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected) |
---|
Max Heat Dissipation | • 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected)
|
---|
