Arabirim | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
---|
Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
---|
Fan Sayısı | Fanless |
---|
Kurulum | • Desktop • Wall Mounting |
---|

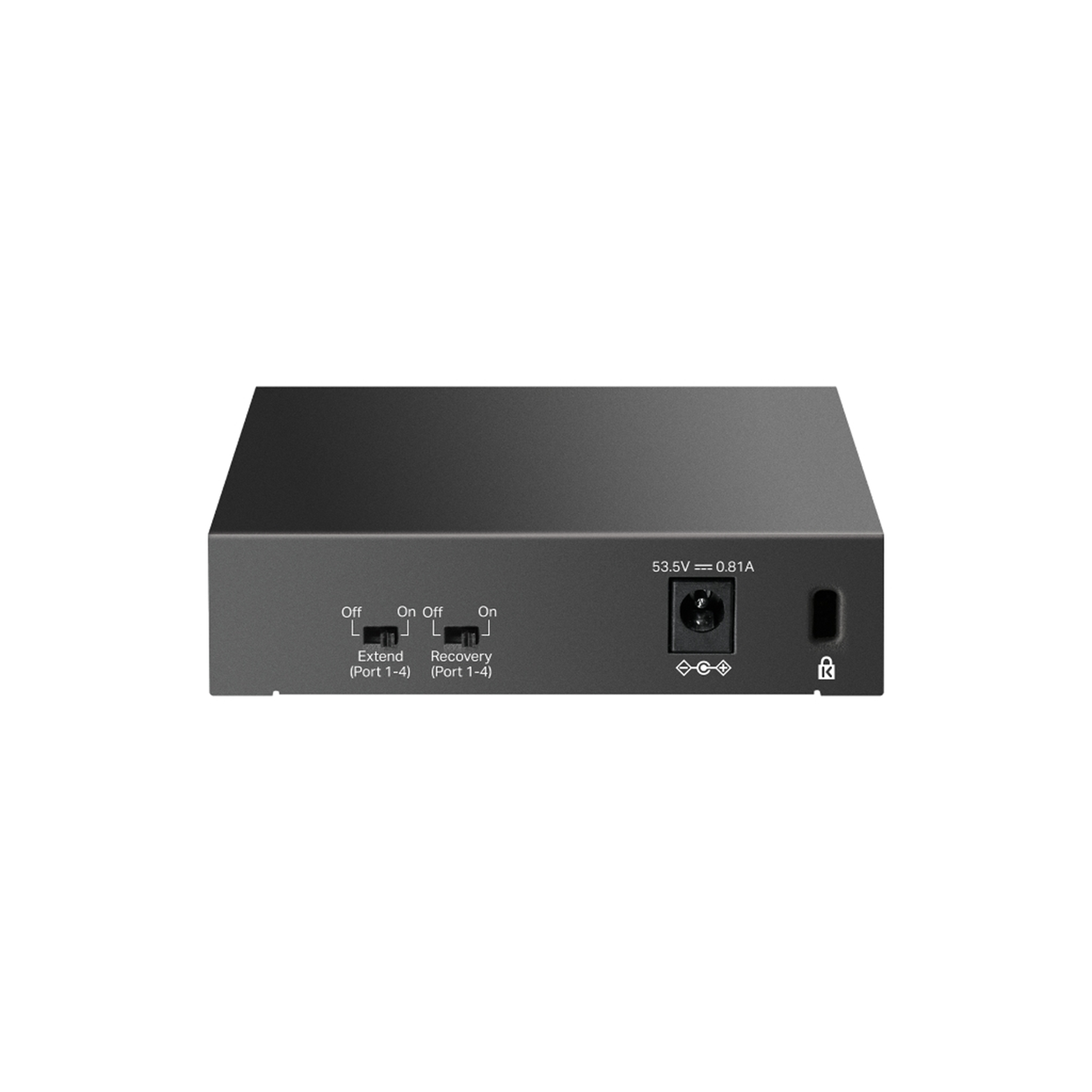

Güç Kaynağı | External Power Adapter (Output: 53.5VDC / 0.81A) |
---|
PoE Portları (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W |
---|

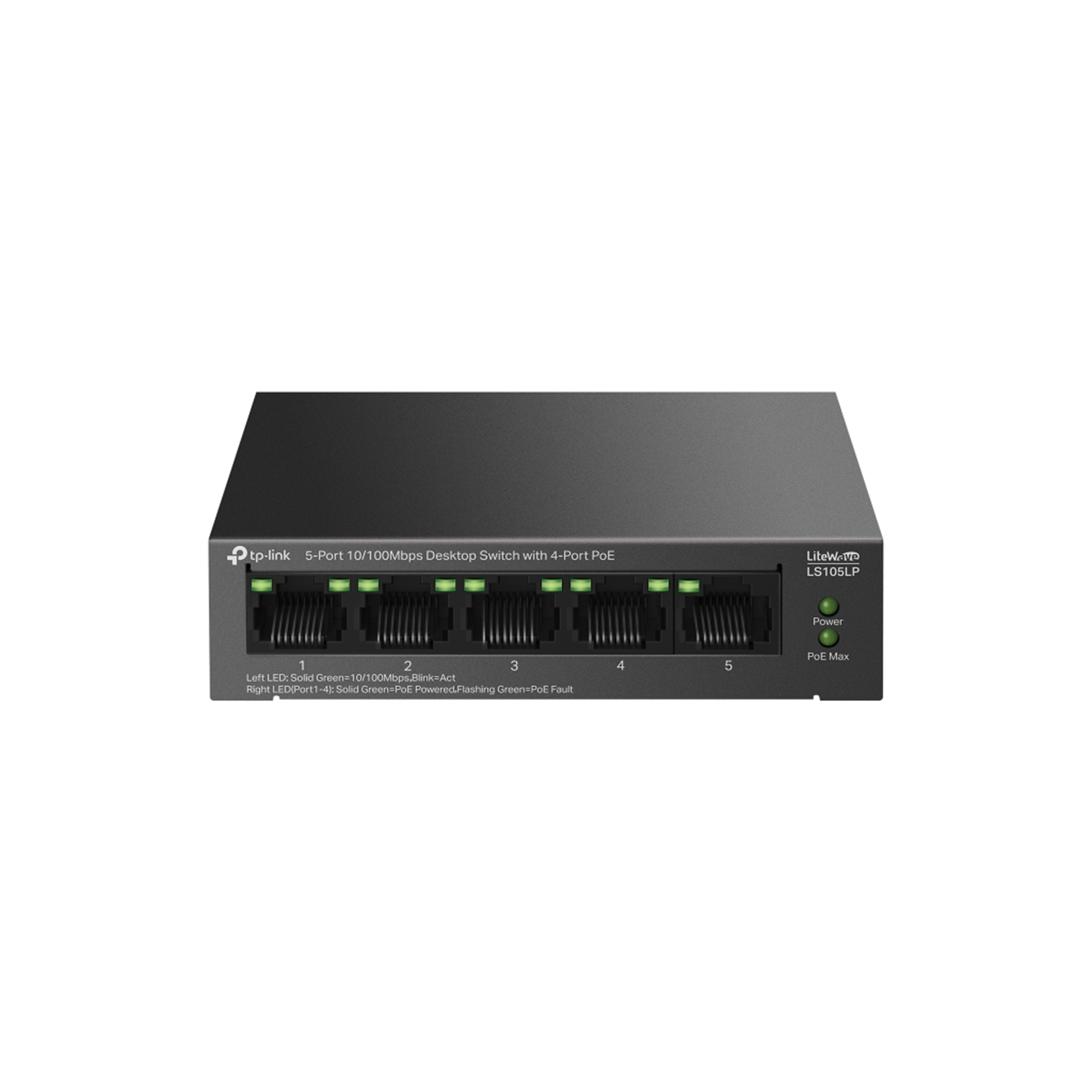

LED Göstergesi | • Power • Link/Act • PoE Status • PoE MAX |
---|
Boyutlar ( W X D X H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
---|
Maks. Güç Tüketimi | • 2.40 W (220 V/50 Hz no PD connected) • 46.45 W (220 V/50 Hz with 41 W PD connected) |
---|
Max Heat Dissipation | • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) |
---|
