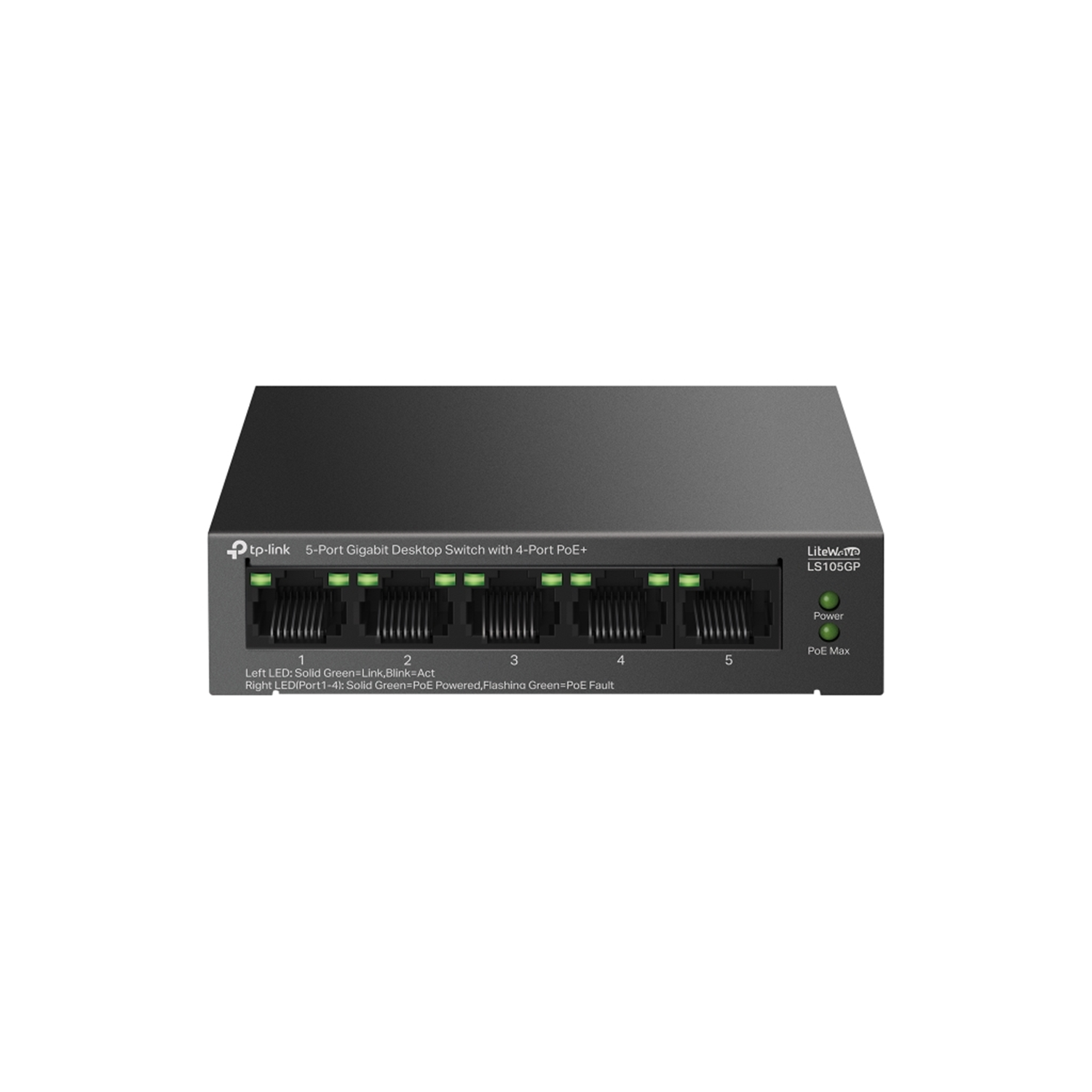

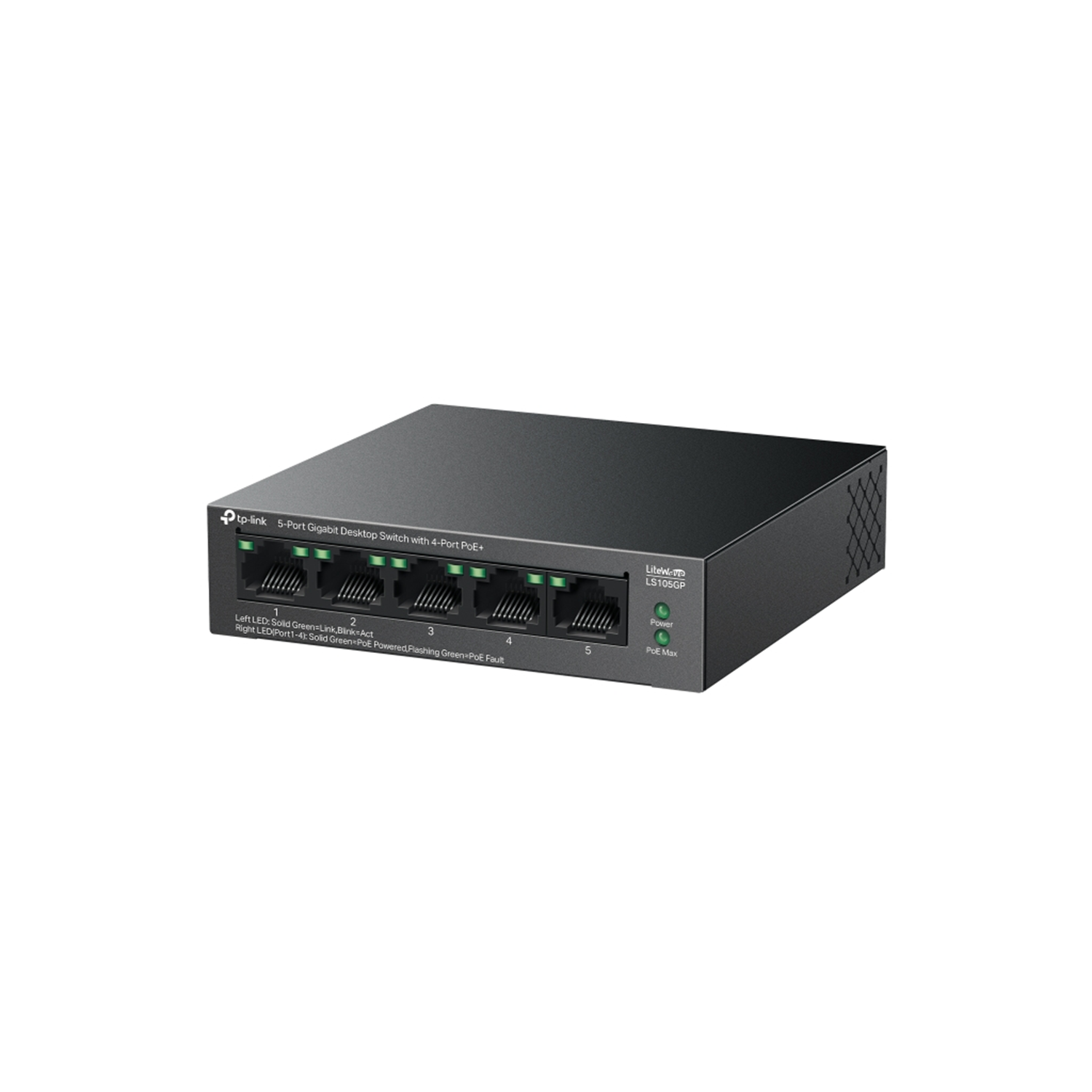

Arabirim | • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
|
---|
Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
|
---|
Fan Sayısı | Fanless |
---|
Kurulum | • Desktop • Wall Mounting |
---|
Güç Kaynağı | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
---|
PoE Portları (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4, up to 30 W PoE output per port • Power Supply: 65 W
|
---|
Boyutlar ( W X D X H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
---|
Maks. Güç Tüketimi | • 4 W (220/50 Hz. no PD connected) • 74.46 W (220/50 Hz. with 65 W PD connected) |
---|
Max Heat Dissipation | • 13.6 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) |
---|
